Hikvision 32-Channel IP Network Video Recorder – DS-7732NXI-K4
Additional information
| Brand | |
|---|---|
| Model | |
| Color | |
| Warranty |
Original price was: 11,900.00 EGP.11,802.00 EGPCurrent price is: 11,802.00 EGP.
Out of stock
Guaranteed Safe Checkout
Features & Compatibility
Hikvision DS-7732NXI-K4 — 32-Channel AcuSense 4K NVR (H.265+, 256 Mbps, 4×SATA)

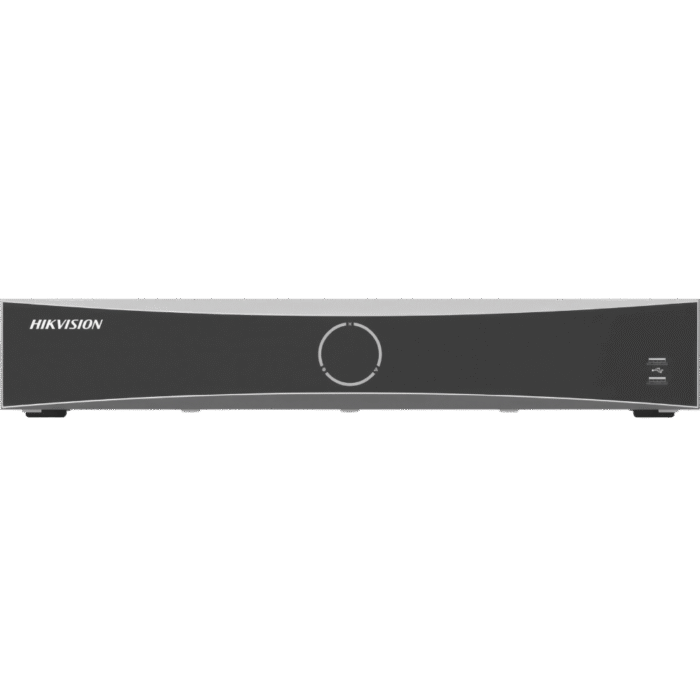

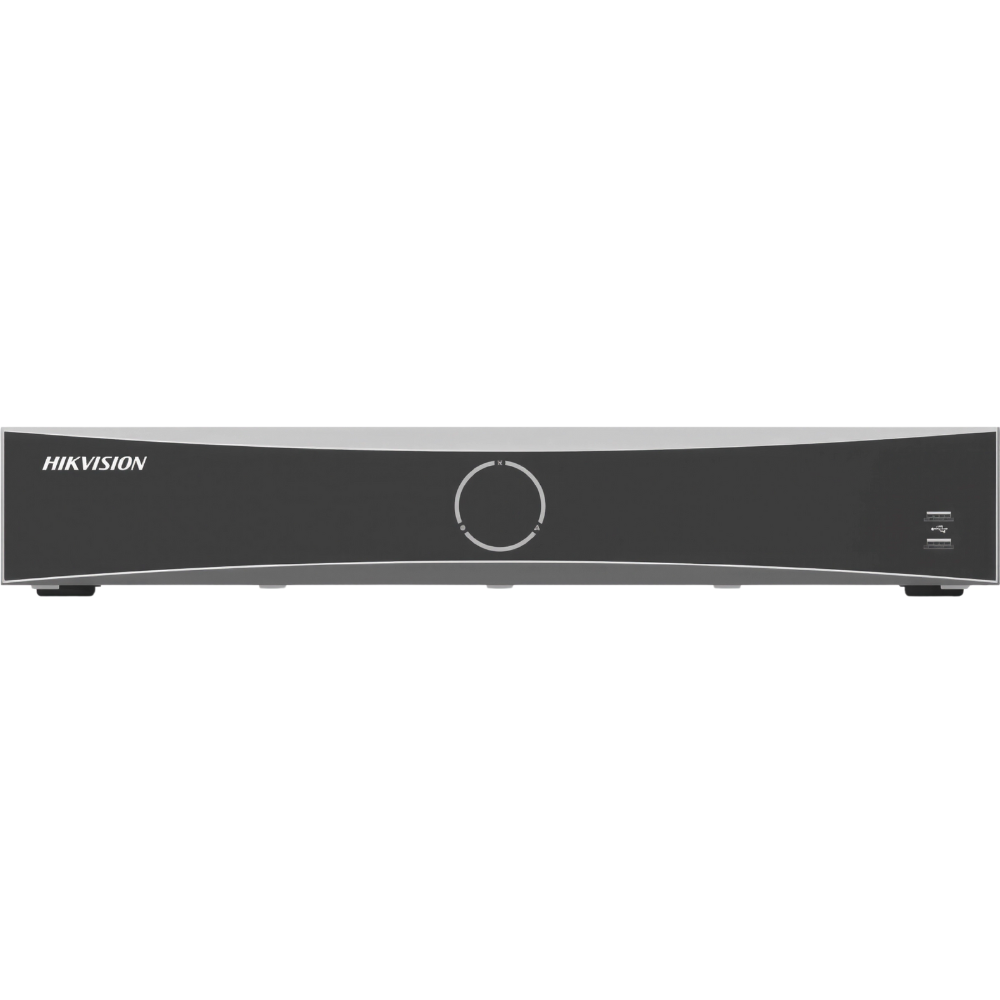

The Hikvision DS-7732NXI-K4 is a 32-channel, 1.5U Pro Series NVR built for medium-to-large IP deployments that need AI accuracy and 4K outputs. It adopts AcuSense to enhance human/vehicle classification and applies Motion Detection 2.0 on all channels to cut nuisance alarms and speed up investigations. With up to 256 Mbps incoming and 160 Mbps outgoing bandwidth, it capably handles dense multi-camera sites. Independent HDMI (up to 4K) and VGA video outputs, efficient H.265+ recording, and four SATA bays (up to 10 TB per drive) deliver scalable storage and smooth playback (up to 16-ch synchronous). Includes a 1-year warranty.
AcuSense AI
Motion Detection 2.0
H.265+
256 Mbps In / 160 Mbps Out
HDMI 4K + VGA
4×SATA (10 TB each)
16-Ch Sync Playback
1.5U Metal
1-Year Warranty
Smarter AI with AcuSense
On-device human/vehicle classification plus Motion Detection 2.0 on every channel help reduce false alerts and accelerate search.
4K Independent Outputs
Run local displays via HDMI up to 4K and VGA simultaneously for live view and instant playback.
High Throughput
256 Mbps incoming / 160 Mbps outgoing for high-resolution, multi-camera scenarios.
Scalable Storage
4×SATA bays (up to 10 TB each), plus front 2×USB 2.0 and rear 1×USB 3.0 for backup and peripherals.
Main Features
- 32-channel IP inputs; video formats: H.265+/H.265/H.264+/H.264.
- Decoding (AI off): 2-ch @ 12 MP, 3-ch @ 8 MP, 6-ch @ 4 MP, or 12-ch @ 1080p.
- Decoding (AI on): up to 1-ch @ 12 MP, 2-ch @ 8 MP, 4-ch @ 4 MP, or 8-ch @ 1080p.
- Incoming 256 Mbps / Outgoing 160 Mbps.
- Independent HDMI (4K) & VGA outputs; 16-ch synchronous playback.
- 4×SATA up to 10 TB per drive; 2×USB 2.0 (front) + 1×USB 3.0 (rear).
- Interfaces: 2× RJ-45 10/100/1000 Mbps, Audio In/Out, RS-232, 2× RS-485, Alarm 16-in / 4-out (16/9 optional).
- AI by device: Facial recognition, Perimeter protection, Motion Detection 2.0.
- Power: 100–240 VAC, 50/60 Hz; consumption ≤ 20 W (w/o HDD); 1.5U metal chassis.
- Operating range: -10°C to +55°C, 10–90% RH.
- 1-year warranty.
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7732NXI-K4 |
| Type | 32-Channel 1.5U AcuSense 4K NVR |
| IP Inputs | 32 channels |
| Decoding | AI off: 2-ch@12 MP / 3-ch@8 MP / 6-ch@4 MP / 12-ch@1080p — AI on: 1-ch@12 MP / 2-ch@8 MP / 4-ch@4 MP / 8-ch@1080p |
| Bandwidth | Incoming 256 Mbps / Outgoing 160 Mbps |
| Compression | H.265+/H.265/H.264+/H.264; Audio: G.711u/a, G.722, G.726, AAC |
| Video Outputs | 1× HDMI (up to 4K), 1× VGA (independent) |
| Playback | Up to 16-channel synchronous playback |
| Storage | 4× SATA, up to 10 TB each |
| Interfaces | 2× RJ-45 GbE; 2× USB 2.0 (front) + 1× USB 3.0 (rear); RS-232; 2× RS-485; Alarm 16 in / 4 out |
| Power | 100–240 VAC, 50/60 Hz; ≤ 20 W (w/o HDD) |
| Operating Conditions | -10°C ~ +55°C; 10%–90% RH |
| Dimensions / Weight | 445 × 400 × 75 mm; ≤ 5 kg (w/o HDD) |
| Warranty | 1-Year |
