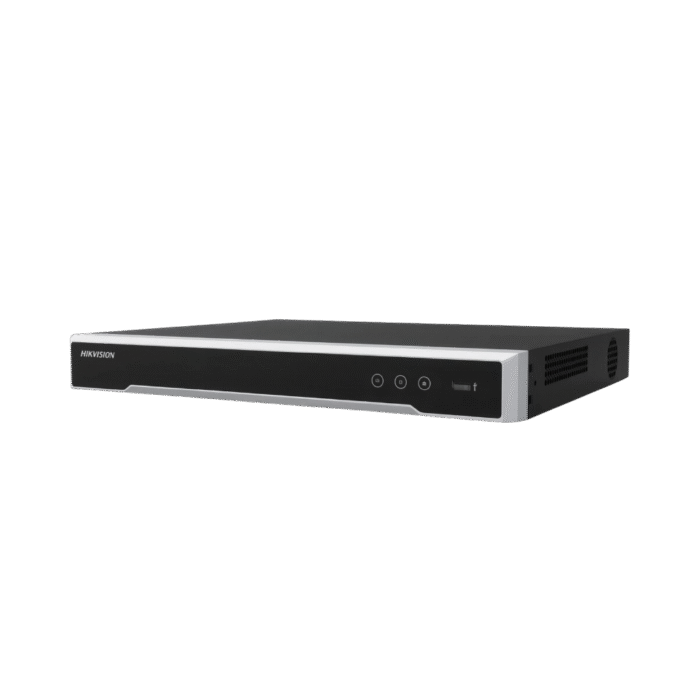

Hikvision 16-Channel IP Network Video Recorder – High-Def 8MP Support – DS-7616NI-Q2/16P(D)
Additional information
| Brand | |
|---|---|
| Model | |
| Color | |
| Warranty |
Original price was: 8,950.00 EGP.8,839.00 EGPCurrent price is: 8,839.00 EGP.
Out of stock
Guaranteed Safe Checkout
Features & Compatibility
Hikvision DS-7616NI-Q2/16P(D) — 16-Channel PoE NVR (H.265+, 160 Mbps, up to 8 MP, HDMI 4K)
The Hikvision DS-7616NI-Q2/16P(D) is a professional 1U 16-channel PoE NVR for small and mid-size deployments. It supports up to 8 MP per channel with 160 Mbps incoming bandwidth, H.265+ compression, and dual local outputs (HDMI up to 4K + VGA). With 16 × PoE ports (IEEE 802.3af/at, ~150 W total), two SATA bays (up to 8 TB each), and Motion Detection 2.0 (human/vehicle classification), it delivers a clean, power-integrated setup. Backed by a 1-year warranty.
Built-in 16× PoE
Up to 8 MP
160 Mbps Input
H.265+
HDMI 4K + VGA
2× SATA (8 TB each)
Motion Detection 2.0
1-Year Warranty
Plug-and-Play PoE
Power and data on a single cable per camera via 16 built-in PoE ports — faster, cleaner installs.
4K Local Monitoring
HDMI output up to 4K for crisp walls/monitors; VGA mirrored output for flexibility.
Efficient Storage
H.265+ reduces bitrate and saves disk space without compromising detail.
Smart Search
Motion Detection 2.0 with human/vehicle filters helps you find events fast.
Main Features
- 16 IP inputs with 16× PoE (IEEE 802.3af/at, ~150 W total).
- Recording up to 8 MP per channel; 160 Mbps incoming bandwidth; 80 Mbps outgoing.
- Video compression: H.265+/H.265/H.264+/H.264.
- Local outputs: HDMI up to 4K + VGA (simultaneous).
- Storage: 2 × SATA (up to 8 TB each).
- Decoding (typical): 1-ch @ 8 MP / 3-ch @ 4 MP / 6-ch @ 1080p.
- 1 × RJ-45 Gigabit LAN; 2 × USB 2.0 (front & rear).
- Power: 100–240 VAC; consumption ≤ 15 W (without HDD, PoE off).
- Operating: -10 °C ~ +55 °C; 10–90% RH; 1U chassis.
- 1-year warranty.
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7616NI-Q2/16P(D) |
| Type | 1U 16-Channel PoE Network Video Recorder |
| IP Inputs | 16 channels (16 × PoE) |
| Max Recording Resolution | Up to 8 MP/channel |
| Incoming / Outgoing BW | 160 Mbps / 80 Mbps |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Video Outputs | 1× HDMI (up to 4K), 1× VGA (simultaneous) |
| Decoding Capability | ~1×8 MP / 3×4 MP / 6×1080p |
| Storage | 2× SATA, up to 8 TB each |
| Network | 1× RJ-45 10/100/1000 Mbps |
| USB | 2× USB 2.0 (front + rear) |
| Power | 100–240 VAC; ≤15 W (no HDD, PoE off) |
| Operating Conditions | -10 °C ~ +55 °C; 10–90% RH |
| Dimensions / Weight | 385 × 315 × 52 mm; ≤2.6 kg (w/o HDD) |
| Warranty | 1-Year |
