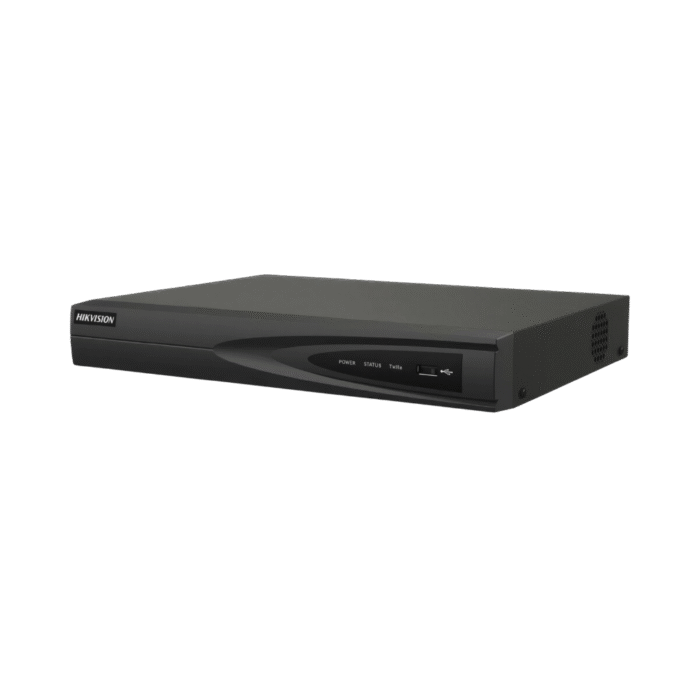

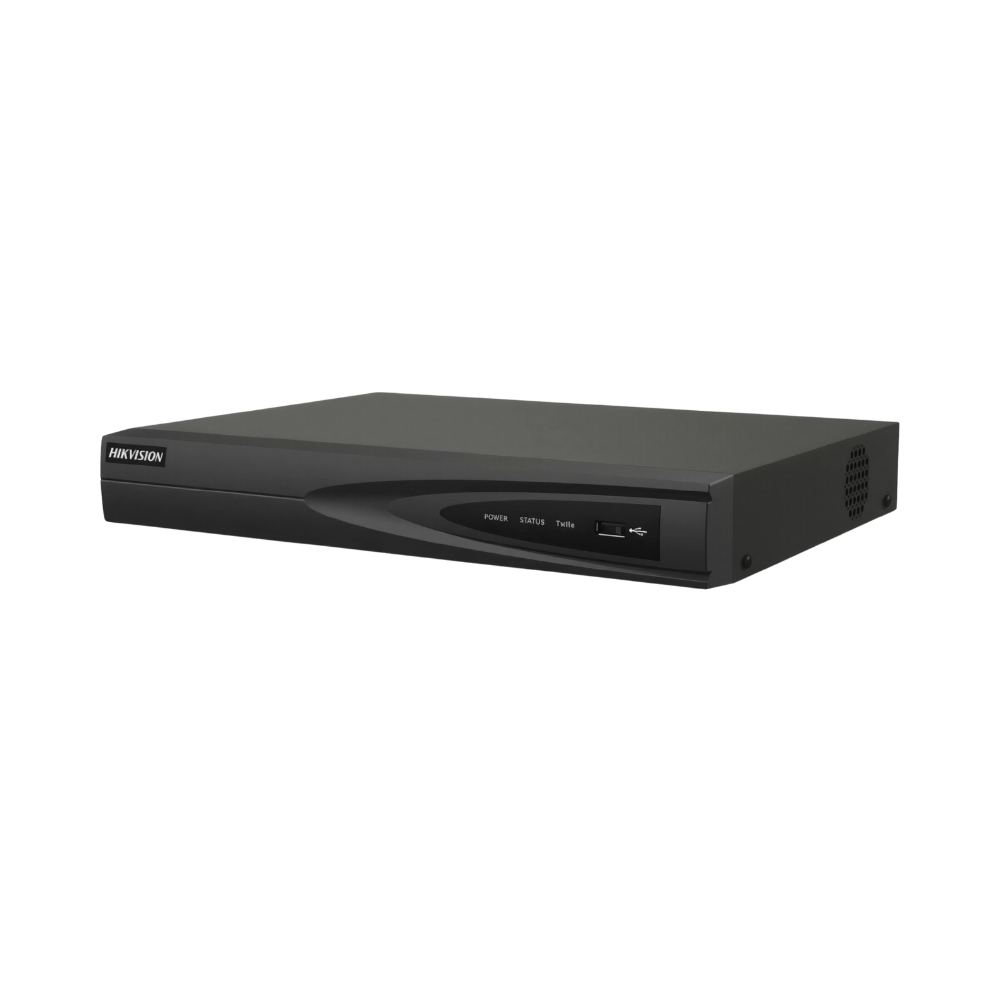

Hikvision 4-Channel IP Network Video Recorder – DS-7604NI-Q1/4P
Additional information
| Brand | |
|---|---|
| Model | |
| Color | |
| Warranty |
Original price was: 3,790.00 EGP.3,688.00 EGPCurrent price is: 3,688.00 EGP.
Out of stock
Guaranteed Safe Checkout
Features & Compatibility
Hikvision DS-7604NI-Q1/4P — 4-Channel PoE Network Video Recorder (4K HDMI, H.265+, 40 Mbps)
The Hikvision DS-7604NI-Q1/4P is a compact 4-channel PoE NVR ideal for homes, offices and small shops. It supports up to 8 MP IP cameras with 40 Mbps incoming and 80 Mbps outgoing bandwidth, delivers 4K HDMI and VGA outputs, and records via a single SATA (up to 8 TB). With 4 × PoE (IEEE 802.3af/at, up to ~50 W total), H.265+ compression, smart search and motion-based events, it’s a clean plug-and-play solution. Backed by a 1-year warranty.
4× PoE Built-in
Up to 8 MP
40 Mbps In / 80 Mbps Out
H.265+
HDMI 4K + VGA
1× SATA (up to 8 TB)
Smart Search
1-Year Warranty
Simple PoE Deployment
Power and data through a single cable per camera via 4 built-in PoE ports.
4K Local Monitoring
HDMI up to 4K with simultaneous VGA output for flexible on-site viewing.
Space-Saving Storage
H.265+ improves efficiency; one SATA bay supports up to 8 TB for long retention.
Smart Playback
Motion and event filters help find what matters quickly.
Main Features
- 4 IP inputs with 4 × PoE (IEEE 802.3af/at), total PoE power ≤ 50 W.
- Recording up to 8 MP per channel; 40 Mbps incoming / 80 Mbps outgoing bandwidth.
- Video compression: H.265+/H.265/H.264+/H.264.
- Local outputs: HDMI up to 4K and VGA (simultaneous).
- Storage: 1 × SATA (up to 8 TB).
- Typical decoding: 1-ch @ 8 MP (30 fps) or 5-ch @ 1080p.
- Audio I/O: 1 × in, 1 × out (RCA); two-way audio supported.
- Network: 1 × RJ-45 10/100 Mbps; 4 × PoE 10/100 Mbps.
- Power: 48 VDC adapter; consumption ≤ 10 W (without HDD & PoE off).
- Operating: -10 °C to +55 °C; 10–90% RH.
- Dimensions/Weight: 320 × 240 × 48 mm; ≤ 1 kg (w/o HDD).
- 1-year warranty.
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7604NI-Q1/4P |
| Type | 4-Channel PoE Network Video Recorder |
| IP Inputs | 4 channels (4 × PoE) |
| Max Recording Resolution | Up to 8 MP/channel |
| Bandwidth (In/Out) | 40 Mbps / 80 Mbps |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Video Outputs | 1× HDMI (up to 4K), 1× VGA (simultaneous) |
| Decoding | ~1×8 MP (30 fps) / 5×1080p (30 fps) |
| Storage | 1× SATA, up to 8 TB |
| Audio I/O | 1× In (RCA), 1× Out (RCA); two-way audio |
| Network | 1× RJ-45 10/100 Mbps + 4× PoE 10/100 Mbps |
| Power | 48 VDC adapter; ≤10 W (w/o HDD, PoE off); PoE budget ≤50 W |
| Operating | -10 °C ~ +55 °C; 10–90% RH |
| Dimensions / Weight | 320 × 240 × 48 mm; ≤1 kg (w/o HDD) |
| Warranty | 1-Year |
